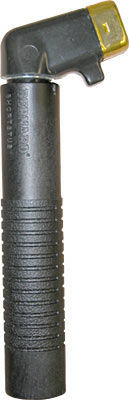

Bernard shortstubsâ„¢ electrode holder 40S
Designed for quick, easy installation of electrodes and built to last
with a proven high impact, high heat replaceable head. Electrodes
can be used to within one inch of the high heat, high impact head.
The lightweight 400 amp holder operates efficiently with electrodes
from 1 16" to 1 4" diameter. Over 2,000 pounds of gripping pressure.
Replaceable head can be ordered separately and installed quickly.
Bernard 40S Shortstub holder.
Capacity: 400 amp 60% duty cycle.
Electrode size: 1 16" (1.6 mm) 1 4" (6.4 mm).
Cable connection: large ball point screw.
