Videx laserlite pro complete base station kit g@@d

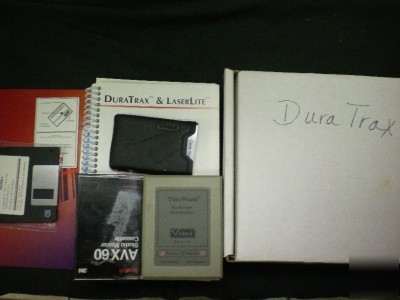

VIDEX LASERLITE PRO COMPLETE BASE STATION KIT G@@D!!
* TIME WAND RECHARGER DOWNLOADER
* TIME WAND BAR CODE SCANPAD
* LASER LITE DURATRAX BASE STATION
* 2 DT/LL APPLICATION BUILDER DISKS
Aluminum case, weather-resistant
Width 1.75" / 1.95" (44.5 / 49.5 mm)
Memory 128K flash ROM, 256K battery backed up RAM
Storage Temperature -4 to 140 F (-20 to 60 C)
Operating Temperature 32 to 122 F (0 to 50 C)
Humidity 5% to 95% non-condensing
alphanumeric, scan, scroll, shift, enter, escape, backspace, free memory, battery voltage, and five function keys
Display 2-line x 16-character LCD
Indicators Good-read LED, laser-on LED, key shift mode LED, battery voltage
Audio Beeper, variable frequency and duration settings
Internal Clock Real-time & date
Input Laser bar code, Touch Memory, key entry
Bar Code Symbologies Code 3 of 9, Codabar, Interleaved 2 of 5, UPC, EAN, Code 128
Environment Water and dust resistant
Data Storage Bar code data, origin code, date and time
Software Application Builder - Windows and Macintosh , Developer's environment - BASIC
Light Source Visible laser diode operating at 670nm +/- 10nm
Optical Resolution Element width: min., 0.0055" (0.14 mm); max., 0.2" (5.08 mm)
Scan Rate 36 +/- 3 scans per second
Scanning Range 2.5 - 24 inches optimum
Scan Storage Up to 8200 scans of a five-digit Code 3 of 9 bar code symbology or up to 6000 Touch Buttons with date and time
Batteries Four AA alkaline,lithium, NiCd, or NiMH; one back-up lithium battery
Battery Life Up to 1 year for alkaline; up to 10 years for backup battery
Serial Communications RS-232 serial IR link via HP/SIR
Memory chip stored inside a button-shaped, water-resistant, stainless steel case
3mm variety: 0.64" diameter x 0.12" height (16.3 x 3.2 mm)
5mm variety: 0.64" diameter x 0.23" height (16.3 x 5.9 mm)
flange: 0.68" diameter (17.3 mm)
Weight 3mm: 0.057 ounces (1.6 g), 5mm: 0.12 ounces (3.3 g)
Operating Temperature -40 to 185 F (-40 to 85 C)
Data Storage Unique 48-bit serial number (read only)
4.0" x 4.0" x 1.8" (102 x 102 x 46 mm)
Power Supplies 120v, 60Hz / 220v, 50Hz
Indicator Lights Transmit, receive, power, charging
Connection Ports RJ-11, RS-232
Serial Communications RS-232 serial IR link via HP/SIR to LaserLite Pro
LED Indicator Battery charging
