New 14' wide automotive crossdraft paint spray booth

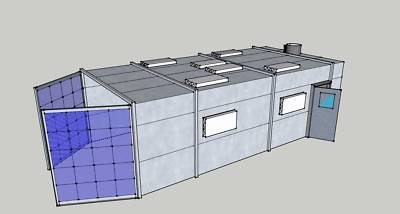

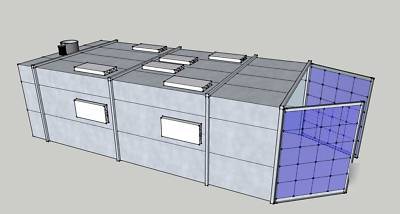

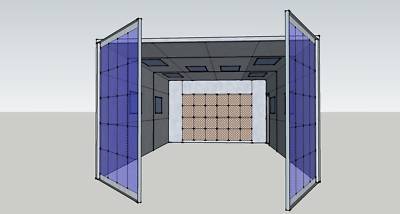

14' WIDE AUTOMOTIVE CROSSDRAFT PAINT SPRAY BOOTH
Working area =14'w X9't X 26'd
Overall size =14'6 w X 9'-3"t X 28 10 d
Fan size = 34" with 3hp three phase motor

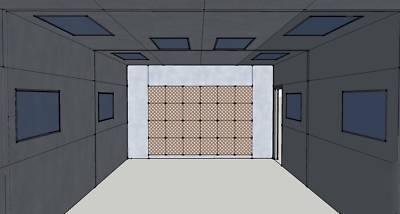

Filters = (24) 20x20 filter cells
(10) 4 4bulb florescent light fixtures mounted behind tempered glass
(1) 34" tube axial fan 3 hp three phase motor tefc non sparking blade
(1) 3 man door with window and brixon safety latch
(4) 3x3 10ga square tube structural supports
34 dia exhaust stack 4 long with companion flanges
34 dia auto damper, 18 ga galvanized with companion flange
34 dia pitched roof curb with storm collar
34 dia flat roof curb with storm collar
NEMA 1 Control panel for fan motor and lights
