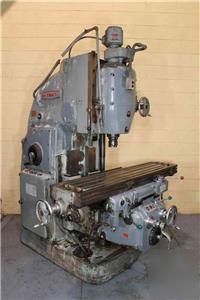

Hitachi model #3M vertical mill
HITACHI MODEL #3M VERTICAL MILL
SERIAL ............................ 8705320
MODEL ............................. 3M
NEW IN ............................ 1970
TABLE AREA (T-SLOTTED) ............ 63 X 14
LONGITUDINAL TABLE TRAVEL ......... 33-7/8
CROSS TABLE TRAVEL ................ 14
VERTICAL TABLE TRAVEL ............. 19-11/16
SPINDLE TAPER ..................... #50 NS
SPINDLE SPEEDS .................... (16) 25 TO 1500 RPM
LONGITUDINAL & CROSS TABLE FEEDS .. (16) 21/32 TO 85 IPM
VERTICAL TABLE FEEDS .............. (16) 1/4 TO 31-1/2 IPM
POWER DRAWBAR ..................... YES
RAPID TRAVERSE .................... YES
MOTOR ............................. 15 HORSEPOWER SPINDLE MOTOR
