Fairchild pressure regulator 30242 in 250 psi out 1-60

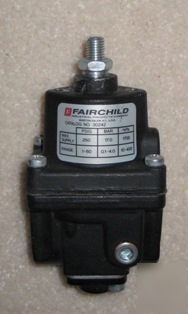

Fairchild Model 30 Midget Pressure Regulator, 0-60 psig outlet press. range, 250 psig max. inlet, 1/4" NPT conn., aluminum body
The Fairchild Model 30 is a compact pressure regulator designed for systems that require precision pressure control, and features a control sensitivity of 1/4" water column. A pressure balanced supply valve prevents supply pressure changes from affecting the setpoint; and a separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing.
* Supply pressure ranges from 0-2 psig to 0-100 psig
* Control sensitivity of 1/4" water column
* Aspirator tube compensates downstream pressure droop
* Can be serviced without removal from line
Screwdriver adjustment, secure nut lock.
Used in a medical prototype for about a week. Very clean!!!
