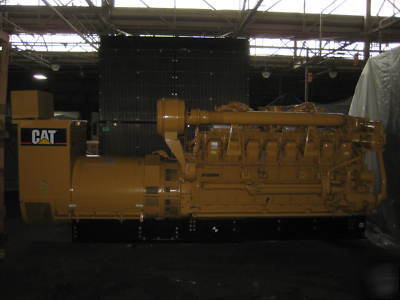

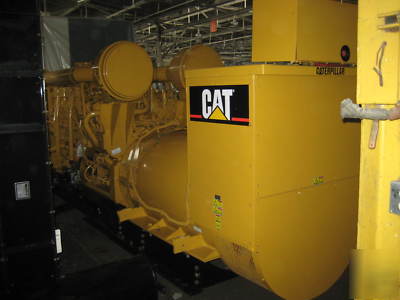

Caterpillar 3516 480/277 v 2000 kw diesel generator set

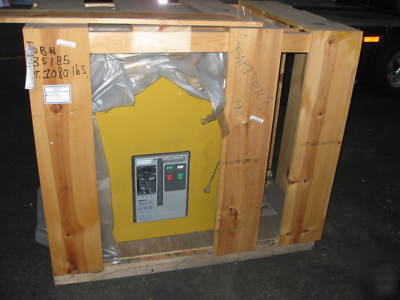

This unit was bought in 2005 for a project that never materialized. It has been stored in an environmentally controlled indoor warehouse since purchase. This Genset includes everything needed from vibration mounts to 3200 Amp Main Breaker with wiring to pipe fittings for the diesel lines. All of the Manuals and Bill of Materials Included. More pictures are available upon request.
http://rivercityindustrial.com/3516.htm

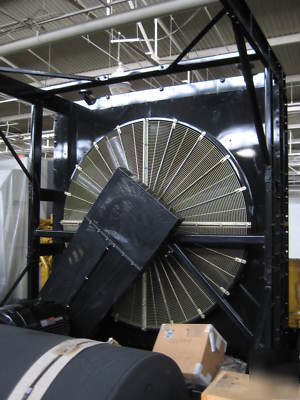

- Remote radiator (125" Tall x 88" Deep and Wide) with 100 HP Motor
- Diesel Day Tank (50 Gallons)
- Hoses and Fittings for Diesel

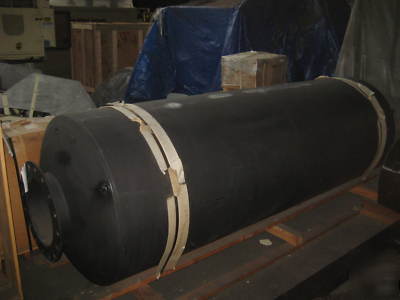

- Flexible Pipes that go from the generator to the muffler
- Batteries (which may be too old now)

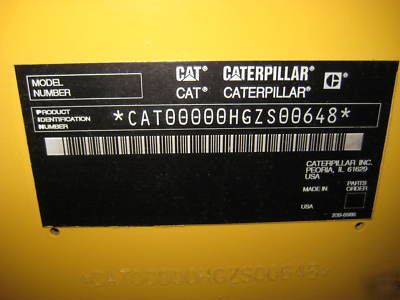

Caterpillar Product Identification Number: CAT00000HGZS00648

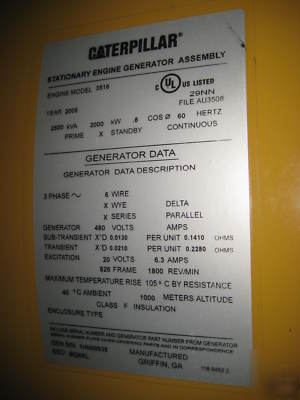

- Stationary Engine Generator Assembly -
2500 kVA 2000 kW .8 pf 60 Hertz
Sub-Transient X"D 0.0130 Per Unit 0.1410 Ohms
Transient X"D 0.0210 Per Unit 0.2280 Ohms
Maximum Temperature Rise 105 Deg C by Resistance
40 Deg C Ambient 1000 Meters Altitude

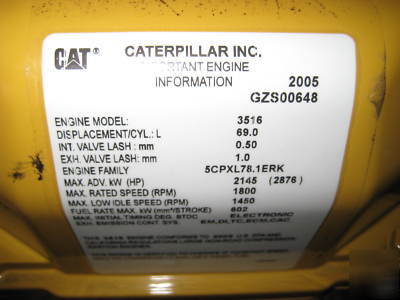

Engine Model: 3516 Displacement/Cyl: 69.0 L
Max. Adv. kW (HP): 2145 (2876)
Max. Low Idle Speed (RPM): 1450
Fuel Rate Max. kW (mm^3/Stroke): 602
Max. Initial Timing Deg. BTDC: Electronic
Exh. Emission Cont. Sys.: EM, DI, TC, ECM, CAC
Ser. No.: GZS00648 Engine Model: 3516
Perf Spec: 0K6307 Max Alt: 1500 M
Full Load Static Fuel: 23.9 mm FLS (Intercept): 0
Fuel Timing: 64.34 mm ECM Software: 2677170
Power: 2148 kW at 1800 RPM Injector: 2309457
Bare Engine Hi Idle: 1818 RPM Turbo: 2454339
Catalog: 5MLSIA (Ground Fault Alarm Setting)
Duty Master XE Energy Efficient
Frame: 405T Type: P Identification No.: 7197191-001 L001 GJ Model No.: P40006336
HP: 100 RPM: 1785 Volts: 460 Amps: 112 Hz: 60
HP: 90 RPM: 1480 Volts: 380 Amps: 122 Hz: 50
Phase: 3 Code: Q Duty: Cont Insul Class: F S.F.: 1.15 AMB: 50 Deg. C
Encl.: TEFC Motor Weight: 1140 lbs
Drive End Bearing: 80BC03J30X Opp D.E. Bearing: 80BC03J30X
