13.56MHZ ISO15693 rfid reader/writer pcb module / RS232
13.56Mhz ISO15693 RFID Reader/Writer PCB module
Part No : 15693-RW-232-PCB1 (datasheet download here)
Tag supported: I.CODE SLI, Tag_it
RS232 interface, baud rate 9,600 ~ 115,200 bps
Operating distance: Up to 80mm, depending on tag
Storage temperature: -40 C ~ +85 C
Operating temperature: -20 C ~ +70 C
Dimension: 85 55 7 mm (similar size as a ISO card)
Two LEDs, green led is auto light when tag in detection range, red led is controlled by host
The PA1 pin is low level indicating tag in detection range, and high level indicating tag out

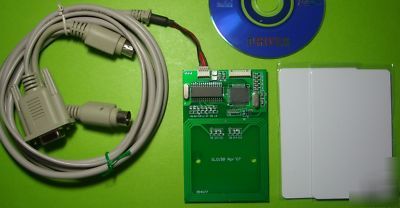

* ISO15693 reader / writer PCB module 1 pc
* ISO15693 I-Code card x 2 pcs
* software pack CD x 1 (free download here)
By registered airmail (~7-21 days)
