Addison cnc hydraulic rotary tube bender

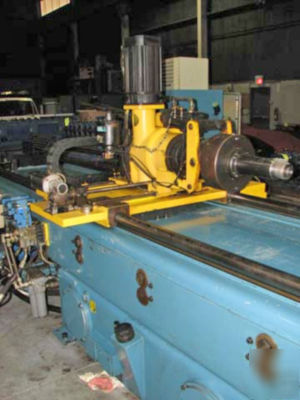

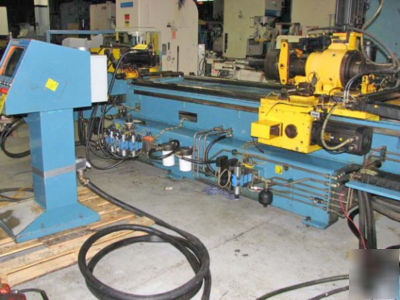

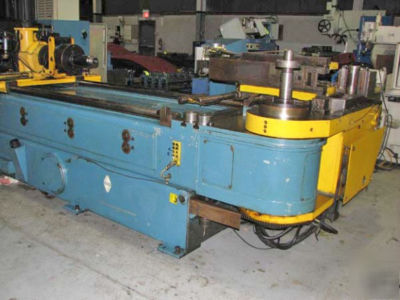

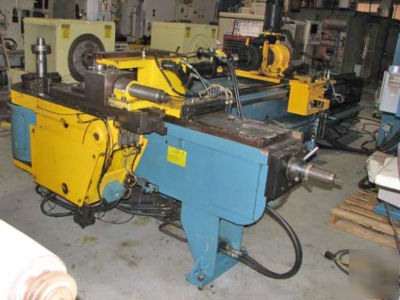

Addison CNC Hydraulic Rotary Tube Bender
Maximum Bend Radius ................... 23.6"
Minimum Centerline Radius ............. 2"
Maximum Tube Length Over Mandrel ...... 157.6"
Max. Degree of Bend (C-Axis) .......... 0 - 193 Deg.
Plane of Bend (B-Axis) ................ 0 - 360 Deg.
Follower Slide Stroke ................. 29.78"
Clamp Slide Stroke (Direct Acting) .... 9"
Horizontal Shift (X-Axis) ............. 23.62"
Axis Speed (Y-Axis Feed) .............. 1575 IPM
Axis Speed (B-Axis Rotation) .......... 20 RPM
Axis Speed (C-Axis Bending) ........... 3.5 RPM
Axis Speed (X-Axis Radius) ............ 394 IPM

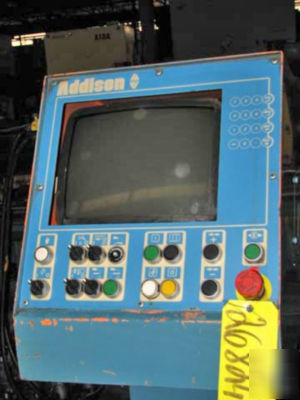

Touch Screen 3-Axis Programmable CNC Control
Motorized Carriage for Plane of Bend and Distance
Assorted Collets, I.D. and O.D.
