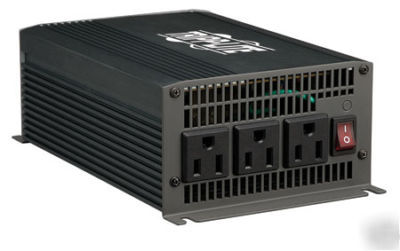

Ultra compact 700 watt dc to ac power inverter
Product Details: Harness your vehicle's battery to efficiently power appliances, small electronics and office equipment on the road. Continuously supplies up to 700W of 120V AC power to 3 AC outlets from any 12V battery. Featuring an ultra-compact, lightweight design with metal housing, the PV700HF is among the smallest, most rugged inverters available.
Typical Applications Ideal for portable electronics, office equipment, RV and mobile appliances, video game and small entertainment systems, battery chargers, and more.
Package Includes PV700HF Ultra-Compact DC-to-AC Inverter Instruction manual with warranty information
Features:SYSTEM OVERVIEW Compact 12V DC to 120V AC power inverter. 700W continuous/1400W peak (instantaneous). Requires hardwire DC installation. 3 AC outlets. DC input operating range 10-15V DC. Alarm sounds as voltage drops to 10.5V. Auto-shutdown occurs at 10V Voltage compatibility: Compatible with 12V DC automotive or battery power sources Frequency compatibility: 60 Hz
OUTPUT Output watt capacity (watts): 700W (continuous)/1400W (peak) Output nominal voltage: 120V Output voltage regulation: Maintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC) Output frequency regulation: 60 Hz (+/- 3 Hz) Outlet quantity / type: 3 x NEMA 5-15R
INPUT Maximum input amps / watts: Full continuous load - 80A at 12V DC, No load - 0.95A at 12V DC, Shutdown - 150 microamps Input connection type: Set of 2 DC bolt-down wiring terminals Input cord length: User supplies cabling. Minimum gauges for full load operation: 6 gauge or larger (see instruction manual) Recommended electrical service: Requires 12V DC input source capable of delivering 80A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 125A battery system fusing is recommended
BATTERY DC system voltage: 12V LEDS ALARMS & SWITCHES Alarms: Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less Switches: Lighted on/off power switch
ENVIRONMENTAL Operating Temperature: 32-104 Fahrenheit / 0-40 Celcius Relative Humidity: 0-95% non-condensing
WARRANTY Product warranty: 1 year (outside the U.S. and Canada, call for warranty information)
SPECIAL FEATURES TVSS grounding: Main grounding screw for connecting inverter to earth, vehicle, or boat grounding systems Appearance: Attractive metallic gray color scheme
