Ssmb female crimp connector ra for RG316 LMR100 RG174

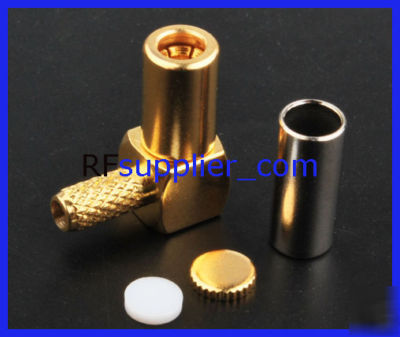

SSMB female crimp connector right angle for RG316 RG174 LMR100
A truly flexible alternative to Semi-Rigid offered in 086 and 141 Semi-Rigid alternatives. This is a Teflon Jacketed Flexible Cable offering electrical performance typical of their Semi-Rigid counter parts. These assemblies are capable of frequencies up to 40GHz with proper connector configurations.
SSMB RF connectors are microminiature devices that provide repeatable electrical performance from DC to 3GHz. The standard mating design for SSMB series connectors are similar to SMB and SMC but with size reduced approximately one-third. This makes them ideal for use in confined areas where the use of wrenches is not practical. They are lightweight, easy to connect and disconnect, vibration-proof and highly reliable. They are best suited for use with cables in the range of .070" to .120" diameters, such as RG-178, RG-174, and RG-316. Because of their small-size and tight tolerance, finishes other than gold plating are not recommended.
SSMB type connectors have gained wide acceptance and usage in military radio systems, where small size is needed for miniaturization but ruggedness and reliability are very important.
Dielectric Withstanding Voltage (at sea level, in V rms, 50 Hz)
Working Voltage(at sea level, in V rms, 50 Hz)
Engagement/Disengagement Force
6 lbs max engagement/1 lb min disengagement
