AWM2100V honeywell airflow sensor switch

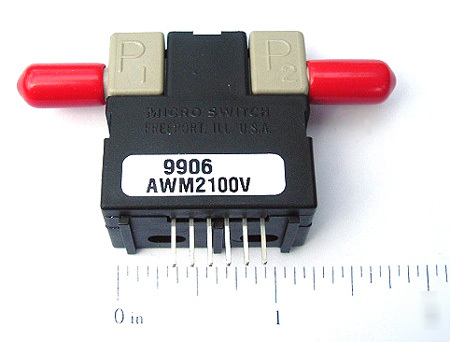

AWM2100V Honeywell Airflow Sensor Switch
Airflow Sensor Signal Conditioning: Unamplified (mV);
Flow/Pressure Range: 200 sccm; Port Style: Straight
* Actual mass air flow sensing
* Low differential pressure sensing
* Damper control for heating ventilation and air conditioning systems
* Medical respirators and ventilators
The AWM2000 Series microbridge mass airflow sensor is a passive device comprised of two Wheatstone bridges. The heater control circuit is required for operation per specifications. The sensing bridge supply circuit is also required for operation per specifications. These two circuits are not on board the package and must be supplied in the application. The differential amplifier is a useful interface for the sensing bridge. It can be used to introduce gain and to voltage offsets to the sensor output.
AWM Series Microbridge Mass Airflow Sensors are not designed to sense liquid flow and will be damaged by liquid flow through the sensor. Failure to comply with these instructions could result in product damage.
Signal Conditioning Unamplified (mV)
Flow/Pressure Range 200 sccm
Output Voltage @ Trim Point 30.0 mV dc @ 100 sccm
Null Shift over Temperature 0.20 mV dc
Output Shift over Temperature 2.5% Reading
Maximum change in flow rate 5.0 SLPM/s
Max. Repeatability & Hysteresis Error 0.35% Reading
Response Time 1 ms typ. 3 ms max.
Supply Voltage 8.0 Vdc min. 10.0 Vdc typ. 15.0 Vdc max.
Maximum Common Mode Pressure 25.0 psi
Power Consumption 30 mW typ. 50 mW max.
Operating Temperature Range -25 C to 85 C [-13 F to 185 F]
Storage Temperature Range -40 C to 90 C [-40 F to 194 F]
Media Compatibility Dry gas only
Shock 100 g peak (5 drops 6 axes)
Purchase price is for 1 airflow sensor
Need more pieces? Contact us for a custom listing for the quantity you need.
