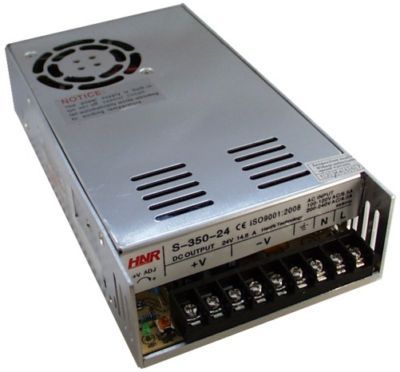

Power supply 14.6A for cnc step stepping stepper motor
Power Supply for Stepper Motor, Servo Motor and any CNC and automation application.
- Output current range 0-14.6A.
- Output Voltage Adjustment Range 20-26.4V
- AC Input Voltage Range 90-132Vac / 180-267Vac - switch selectable
- AC Current (typical) 6.5A/115V 4.0A/230V
- AC Inrush Current 25A/115V 50A/230V
- Leakage Current <3.5mA/240Vac
- Overload Protection 105 - 150%
- Overvoltage Protection 27.6 32.4V
- Overheating Protection automatic fan
- Temperature coefficient 0.03%/ C (0-50 C)
- Setup, rise, hold-up time 200,100,20ms
- Isolation Resistance 500Vdc/100M
- Withstand Voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- Working Humidity 20% - 90% RH
- Overal Dimension 215x115x50mm
- EMC Standard FCC Part 15J Class A
Detailed Data Sheet is available from website: http:// /s-350-24.html
or get it directly from here: http:// /public_docs/S-350-24.pdf
