New focus 2011 200 khz front end photoreceiver

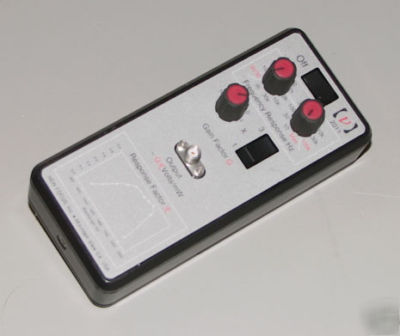

NEW FOCUS 2011 200-KHZ FRONT-END PHOTORECEIVER
* Wavelength Range: 900 - 1700 nm
* 3-dB Bandwidth, Typical: 200 kHz
* Maximum Conversion Gain: 1.9x10 to the 7 V/W
* Typical Maximum Responsivity: 1.0 A/W
* Maximum Transimpedance Gain: 18.8x10 to the 6 V/A
* cw Saturation Power: 10 mW @ 1600 nm
* Detector Material/Type: InGaAs/PIN
* Detector Diameter: 0.3 mm
* Power Requirements: Two internal 9-V batteries
