New artisan solid state timer 438 usa time capsule

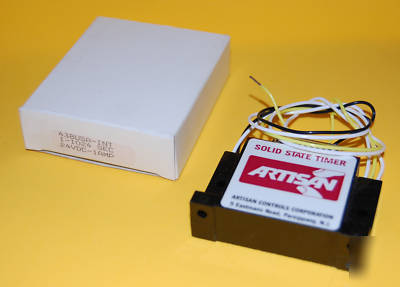

ARTISAN Solid State Timer 438 Time Capsule
The model 438USA (Universal Switch Adjustable Time Capsule) is an all Solid State timer providing Delay on Make control to any load operating from 19 to 288V AC or DC. Timing is set via a binary coded dip switch and is adjustable from 0.1-102.4, 1-1024 or 2-2024 seconds. When power is applied, the 438USA remains in the "off" state. When the preset time period has elapsed, the 438USA switches "on" allowing the load to energize. The load remains energized as long as power is applied.
* Operating Voltage: 19-288VAC or DC, non polarized.
Output: 10 milliamperes to 1 ampere inductive. Inrush to 25 amperes for 8 milliseconds.
Timing Mode: Delay On Make.
Timing Ranges (3) as follows: 0.1-102.4, 1-1024 and 2-2024 seconds.
Timing Adjustment: 10 position Dip switch located between power terminals. Opening of any switch position adds its associated time value to the total timing period.
Condition: Brand New in Mfg Box!
