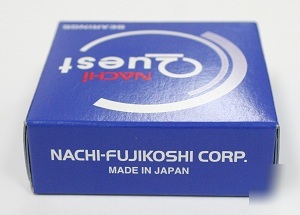

NJ317 nachi cylindrical roller bearing made in japan
Nachi Cylindrical Roller Bearings
NJ317 Nachi Cylindrical Roller Bearings, Steel Cage, Made in Japan, here are the dimensions of the NJ317, the NJ317 inner diameter is 85mm, the NJ317 outer diameter is 180mm, NJ317 width is 41mm.
* Item: NJ317 Cylindrical Roller Bearings
* Dimensions: 85*180*41 mm/Metric
* ID (inner diameter)/Bore=85mm
* OD (outer diameter D1)=180mm
* Width/Height/thickness=41mm
* NJ317 Type: Nachi Cylindrical Roller Bearings
* Quantity: One Bearing NJ317
Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are: N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
