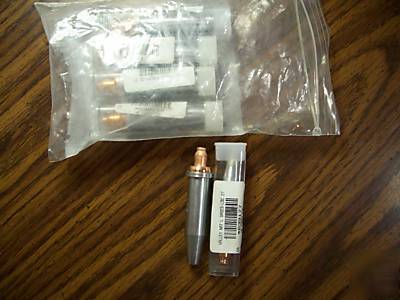

Esab oxweld 1563 hs 1563HS cutting nozzle 4 inch 639177
High speed with low acetylene consumption. Divergent Bore Cutting Oxygen Hole.
***Do not use with low pressure acetylene. *Use where high preheat intensity is desired.
To clean preheat slots, remove external sleeve and use a soft bristled brush.
NOTE DO NOT clean with notched-type wires or twist drills since any metal removal from the passages will destroy the precision cutting characteristics. Use the non-cutting wires and taper reamers included in OXWELD Cleaning Kit (Part No. 755F00). For longer life, nozzles should be cleaned periodically
in a solution of OXWELD nozzle cleaning compound (Part No. 761F00). The cutting orifice of these nozzles should be cleaned only with OXWELD nozzle cleaning compound.
* Hard drawn, electrolytic, tough pitch copper used in one-piece nozzles withstands heat and wear outlasts any copper alloy nozzle
* One-piece nozzle has triple swaged interior gas passages are mirror smooth with internal angles rounded for non-turbulent, more efficient gas flow clean, smooth cuts with minimal kerf
* Preheat ports are closely spaced around cutting orifice for greater concentration of preheat flames
* Long, parallel preheat passages permit re-dressing nozzle without affecting performance
* One-piece nozzle is a single piece of solid copper provides maximum cooling recommended always for acetylene, and for other fuel gases when heat exposure is unusually severe
* Two-piece nozzles recommended for high efficiency with fuel gases other than acetylene solid copper, heavy-wall external sleeve and brass internal sections can be ordered separately to minimize replacement cost
* Conical seats instant aligning provides tight seal, prevents leaks around nozzle nut
