Atten AT5000-F1 2GHZ frequency expander

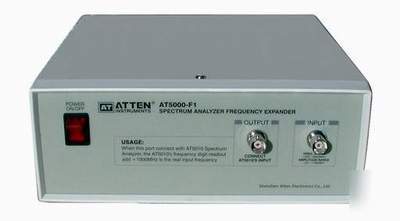

ATTEN AT5000-F1 Frequency Expander1050- 2050MHz For AT5000 serial
Extend the spectrum frequency range of your spectrum analyzer. This unit will allow you test the higher range of frequency based on your 500M/1G spectrum analyzer .
If you have our 5010 (1GHz) spectrum analyzer and add this unit, The frequency Range will be extended to measure at the range of 3050MHz ~ 4050MHz. ( the original range of 5010 is 0.1~1050MHz)
If you have our 5005 (500MHz) spectrum analyzer and add this unit, The frequency Range will be extended to measure at the range of 3050MHz ~ 3550MHz. ( the original range of 5005 is 0.1~500MHz)
Input Frequency Range : 1050MHz ~ 2050MHz
Input level : -27dBm ~ -100dBm
Output : Connect to 5005/5010/5011 spectrum analyzer
Power : Model A 110V or Model B 220V
Power Source :50HzDimension :approx. 5W
1 x BNC/gold late Pin connector
