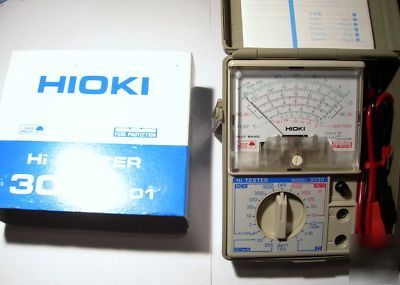

Hioki analog multimeter 3030-01
0.3 V (50 A), 3/12/30/120/300/1000V (20 k-ohm/V)
12 V (9 k-ohm/V) Accuracy: 4 % f.s.
30/120/300/1000 V (9 k-ohm/V) Accuracy: 2.5 % f.s. Average rectifier effective value
0 to 1M-ohm ( center scale 30 ohm), R 1, R 10, R 1 k
Accuracy: 3 % of scale length
50 A/30 m/300 mA (300 mV internal voltage drop)
Battery check: 0.9 to 1.8 V, load resistance 10 ohm
Temperature: -50 to 150 C ( 9021-01 Thermister Temperature Probe is necessary, sold separately)
Drop Proof: one meter to concrete
