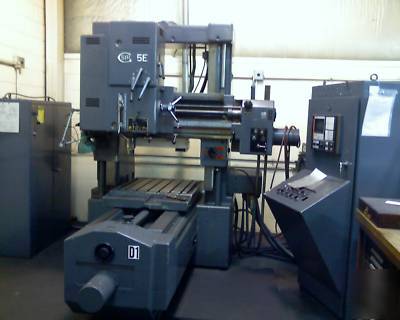

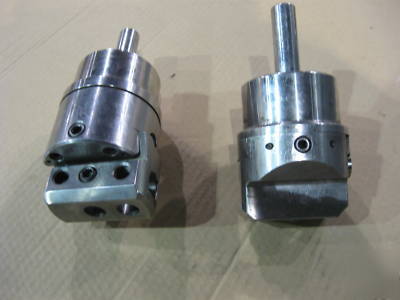

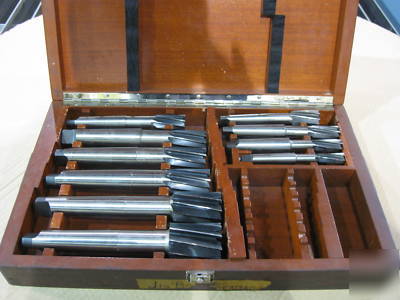

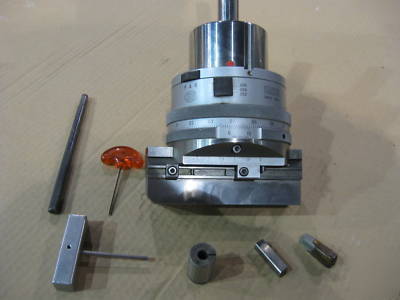

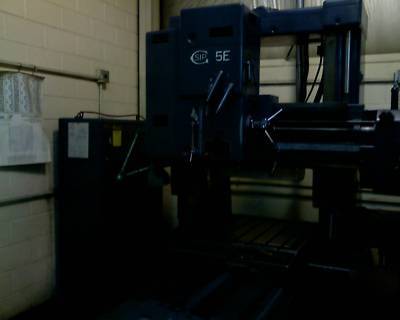

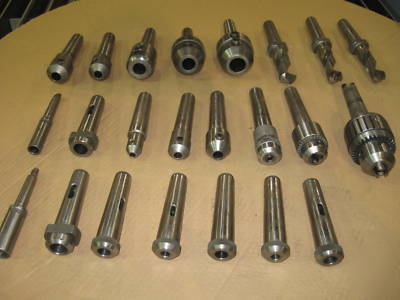

Cnc jig boring machine with tooling


Longitudinal table travel: 28
Transverse spindle head travel: 20
Vertical cross rail travel: 23.5
Maximum distance spindle nose to table: 31.5
Minimum distance spindle nose (quill retracted) to table: 8
Distance between columns: 34.5
Maximum table loading: 1325lbs
Spindle speeds (12): 50 2250 rpm
Approximate machine weight (w/o control): 9700lbs
