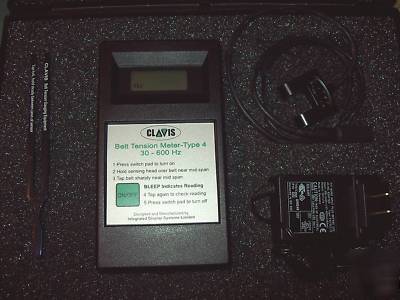

Clavis type 4 hand held belt tension meter
The Clavis hand held beltmeter can be used for all belt tension gauging applications. It produces readings which accurately reflect the tension in the belt, consistently and without operator dependence.
This device is in use throughout the world, both as a production tool for accurate belt tension setting, and as a quality control gauge of belt tension.
The Clavis belt tension meter is both approved and recommended by most of the major manufacturers of drive belts. The equipment consists of a small sensing head which is held across the belt to be measured.
The belt is then tapped to induce the belt to vibrate at its natural frequency. The vibrations are detected and the frequency of vibration is then displayed on the measuring unit.
The unit is suitable for measuring tension in all types of power transmission belts, ranging from toothed timing belts, poly-vee belts, and simple vee belts.
The frequency measurement range is from 30Hz to 600Hz [Type 4], which covers most automotive applications.
Used Surplus - Appears to be in Excellent Condition
