78.75" tbl 15HP spdl toolmex fya-41M vertical mill, #50
78.75" Tbl 15HP Spdl Toolmex FYA-41M VERTICAL MILL, #50

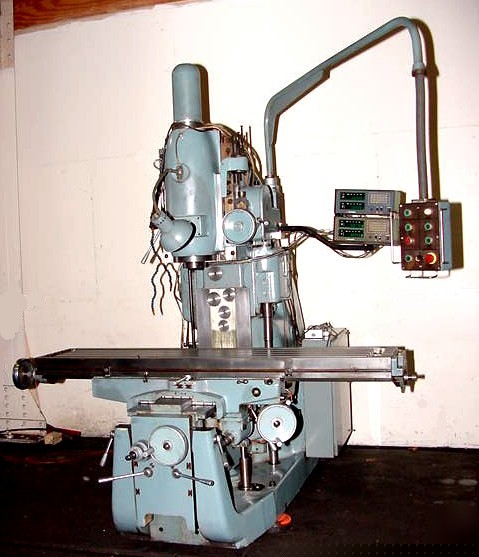

78.75" Table 15HP Spindle Toolmex FYA-41M VERTICAL MILL, #50 PDB,Mitutoyo 4-Axis DRO, HardWays
MODEL: FYA-41M S/N: 1-3004-96-64 MFG: 1978
TABLE SIZE .......................... 78-3/4" X 15-3/4"
LONGITUDINAL TABLE TRAVEL ..................... 41-3/4"
CROSS TABLE TRAVEL ........................... 14-3/16"
VERTICAL TABLE TRAVEL ....................... 13-13/16"
HEAD VERTICAL TRAVEL ........................... 5-7/8"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE ............ 20"
FEED RANGE LONGITUDINAL .................. 1/2 - 42 IPM
FEED RANGE CROSS ......................3/8 - 31-5/8 IPM
FEED RANGE VERTICAL KNEE ................. 1/4 - 20 IPM
FEED RANGE VERTICAL HEAD ................. 1/4 - 20 IPM
SPINDLE SPEEDS (21) ..................... 28 - 1300 RPM
APPROXIMATE WEIGHT ......................... 12,500 LBS
MITUTOYO FOUR AXIS DIGITAL READOUT
HYDRAULICALLY COUNTERBALANCED KNEE
"FORK" DESIGN SUPPORTS, EXTENDING FROM
BASE TO KNEE FOR ADDED RIGIDITY
