2.5' arm 8" col dia willis RD750 radial drill, pwr elev

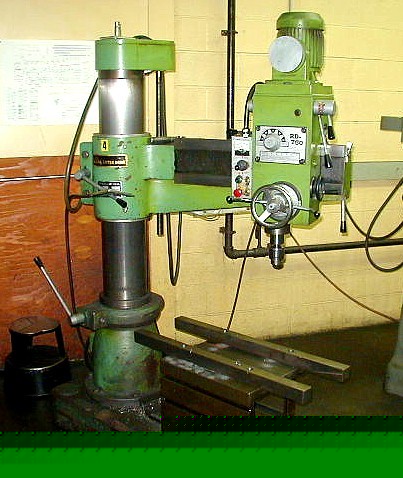

2.5' Arm 8" Col Dia Willis RD750 RADIAL DRILL, Pwr Elev
2.5' Arm Lth 8" Col Dia Willis RD750 RADIAL DRILL, Pwr Elevation,2HP,#4MT,T-Slotted Box Table & Base
MODEL: RD-750 S/N: TY894115, NEW: 1989
MAXIMUM DISTANCE SPINDLE TO COLUMN .. 30-1/2"
MINIMUM DISTANCE SPINDLE TO COLUMN .. 8-7/16"
COLUMN DIAMETER ..................... 8-1/4"
DISTANCE SPINDLE TO BASE MIN/MAX .... 11-1/8" - 43-3/4"
WORKING SURFACE OF BASE ............. 29-3/8" X 20-1/8"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 7-7/8"
SPINDLE FEEDS (3) ................... .002, .0036 & .006 IPR
SPINDLE SPEEDS-(6) .................. 88 TO 1500 RPM
MILD STEEL .......................... 1-1/2"
CAST IRON ........................... 2"
MILD STEEL .......................... 3/4"
CAST IRON ........................... 1"
MILD STEEL .......................... 3"
CAST IRON ........................... 4"
APPROXIMATE WEIGHT .................. 3,000 LBS
OVERALL DIMENSIONS HEAD DOWN ....... 81" TALL
- 1 HORSE POWER ELEVATION OF ARM ON COLUMN
