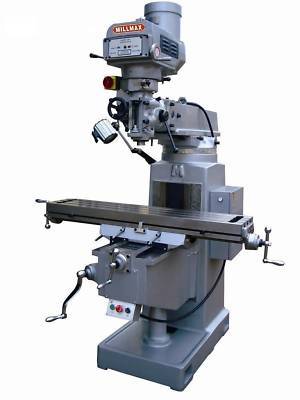

Vari speed vertical knee mill milling machine 3HP 10X50
M3 Series, R8 Spindle, Variable Speed Head, 10x50" Table, Special Promotion Package

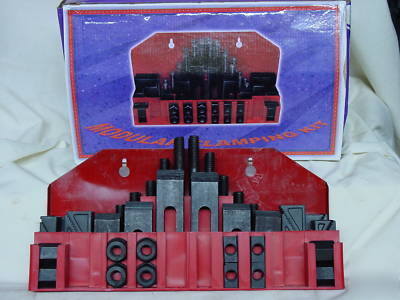

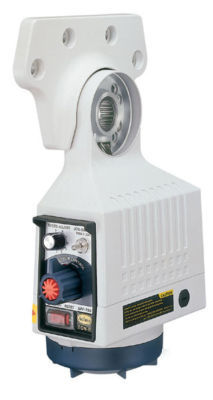

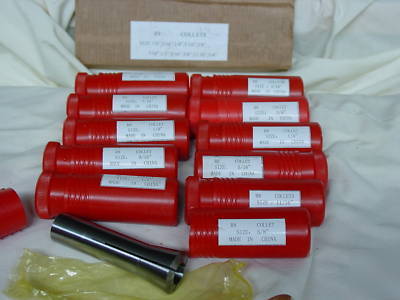

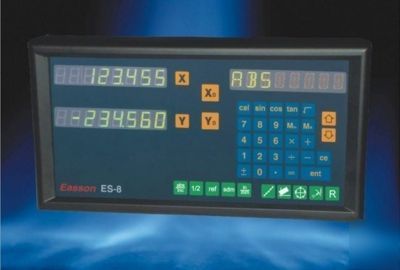

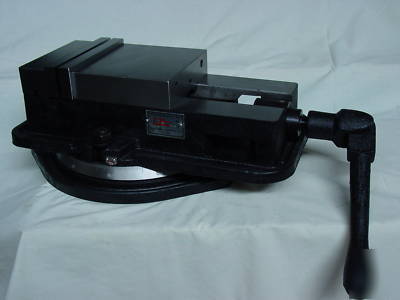

Limited Time Promotional Package includes ABEC7 Super Precision Spindle Bearings, Coolant Pump System With Chip Pan, 2-Axis Easson DRO With Collet Rack, X-Axis Power Feed, 8Pc R8 Collet Set, 52Pc Clamping Kit, 6" Precision Vise With Removeable Swivel Base, Halogen Work Lamp, Accessory Installation and Indididual Packing Costs Included. + +
FREE FREIGHT TO THE LOWER 48!!
(lift gate service not included)
Axis Travels (inch): X-28.74" Y-15.75" Knee13.78" Quill-5" RAM-21.65"
Machine Dimensions 59"x66"x85"
Throat-Z (Spindle to Table) 2.56"min-18.31"max
Throat-Y (Table Center to Column) 8.46"min-23.23max
Variable Speed Spindle Head 60-4200 rpm
3 Hp 3-Phase 220/440VAC Spindle Motors
Hard Chromed Powered Quill - Up and Down - Feed Select: 0.0015, 0.003, 0.006 in/rev
Tempered and Carburized Chrome Molybdenum Steel Spindle
R8 Spindle Taper (NT30 and NT40 Optional) - 100% Factory Test Data Provided
Head Rotation (Deg) 90 left/right, 0-45 front/back, 360 Orbital
PBC-2 Phosphor Bronze Backlash Adjustable Lead Screw Nuts
Full Length Precision Ground Gibbs with Double End Adjustments
Wide Knee - T-Slots (3 x 0.63 x 2.48") - Way Guards - Double Travel Locks
7/16"-20 Draw Bar, Tool Box With Operation Manual And Test Data
SC250 Superior Rigidity - Unique Box Structured Castings
Specifications and Prices subject to change without notice
http:// /index.html
Imported by Good News Industrial LLC
