Triplett 9045 true rms dmm w/temp, cap, freq & backlit

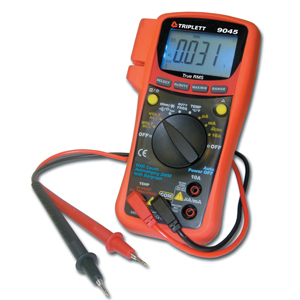

Triplett 9045 True RMS DMM W/Temp, Cap, Freq & Backlit
The Triplett Model 9045 is a 6000 count, autoranging, True RMS, handheld Digital Multimeter with a 61 segment bargraph in its backlit Liquid Crystal Display. At its core is an LSI (Large Scale Integration) integrated circuit which uses dual slope A/D conversion for stability and accuracy. The meter can measure AC and DC Voltage and Current, Resistance, Diode voltage drop, Continuity, Capacitance, Temperature, and Frequency.
* DC Voltage Ranges to 1000V
* AC/DC Current Ranges to 10A
* Resistance Ranges from 600 to 60M
* Capacitance Ranges from 40nF to 4000 F
* Frequency Ranges from 9.999Hz to 9.999MHz
* Splash Proof / Dust Proof Case
* Ergonomic, Overmolded, Shock Absorbing Case w/ Stand
* CAT III 600 Volt / CAT II 1000 Volt Rated
* Includes: Safety Test Leads with Screw-On Alligator Clips, Thermocouple Probe & 9 Volt Battery
