Tektronix cg 5011 program calibration generator w/opt
In these bad economic times, get more bang , for your money with tested, working and calibrated test equipment from AAA Equipment Resources INC.

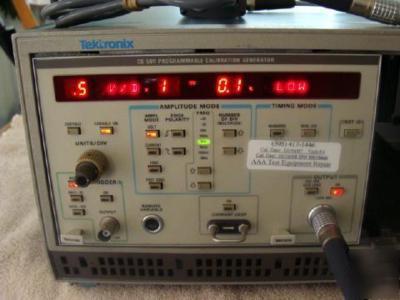

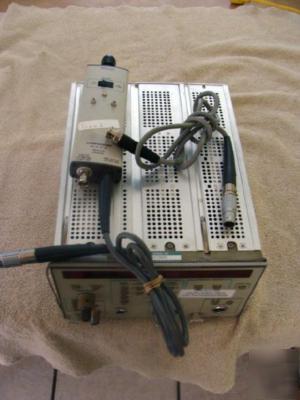

The CG5011 is used either manually, or as a part of an automatic calibration system to calibrate a wide range of oscilloscope parameters. The unit occupies three slots in this TM5006 mainframe, and is programmable by GPIB. The CG 5011 complies with IEEE Standard 488.1-1987, and with Tektronix Standard Codes and Formats. Frequency: 40 V to 80 mV: 10 Hz to 10 kHz. 100 mV to 10 V: +DC or: -DC, 10 Hz to 100 kHz. 12 V to 200 V: +DC or -DC, 10 Hz to 10 kHz.
Features: ***Vertical Gain ***Horizontal Timing and Gain ***Vertical Bandwidth/Pulse Response Characteristics ***Probe Accuracy and Compensation ***Current-Probe Accuracy ***Calibrator-Output Accuracy ***Next-Cal-Date Tracking ***Option 01 adds a temperature compensated, 5 MHz crystal oscillator for a high accuracy time base.
Reasonable offers are well come! REASONABLE ONES!
My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresourcesinc.com/index.html
