New apartment building intercom kit,16 buttons system,

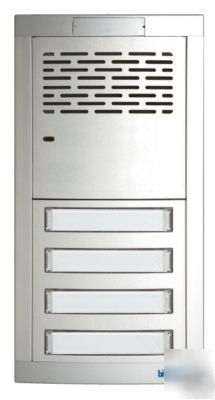

Apartment Buildig Intercom, 16 buttons Kit ready to install
Complete surface mount Domular Classic 1 + 1 wire system
Bitron Video presents, with the Domular Classic Evolution panel, important design and functional developments. Starting from the beauty of the new blue LED, refreshing the panel look.
Moreover name tags (single or splittable) are large and comfortable, in order to allow longer or contracted names to be inserted.
New or existing buildings can easily be adapted to Bitron s system .
Also the mounting is easy using new connection on terminal boards requiring fewer operations.
Module supports have a particular and special uprights shape, equipped with internal and external grooves for fastening functional modules and for easily arranging several supports side by side. To make handy the operation, the lower head is provided with a hinge for fastening and pivoting the panel. The upper head is fastened to the uprights after inserting the functional modules ans then a safety screw, concealed under a small flap, is used to fasten the panel to the embedding box.
All mounting accessories are made of aluminum with rugged thickness and with the same modules aluminum finish.
AN6009 - Universal embedding box.
AN9524/L - 1 + 1 Amplifier 0 button
AN6215/L -2x Module with 4 splittable buttons
AV1407/002 - 16 phones with 1 button for the door release and 1 for option
AN6629/L - Wall frame 1 row 3 module.
AN6033/L - Module support frame
Work great with door release system but NO strike included.
