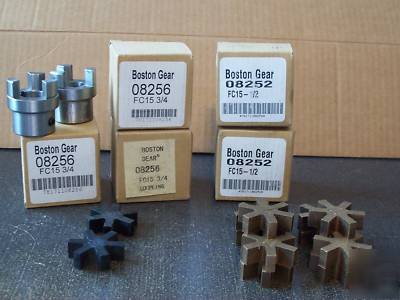

New FC15 boston gear buna & bronze spider coupling lot
Boston Gear size: FC15 PN# 08256 - 5 pcs - 3/4" shaft
Boston Gear size: FC15 PN# 08252 - 2 pcs - 1/2" shaft
Boston Gear No. XFCR15 Rubber Coupling Insert - 2 pcs
Boston Gear No. XFCBB15 Bronze Coupling Insert - 10 pcs
Technical information from Boston Gear website:
Gear No. XFCBB15 Bronze Coupling Insert
For Coupling Size FC15, Maximum Torque 500 Inches per Pound, Color Bronze
* Temp. range: -60 Degree to 250 DegreeF (-51 Degree to 121 DegreeC)
* Boston Jaw-Coupling Spiders
* Oil-Impregnated Bost-Bronze
* Recommended for high torque loads, particularly at slower speeds.
* Item: Oil Impregnated Spider Insert
* Max. Torque (In.-Lbs.): 500
* HP Rating @ 1750 RPM: 13.9
* Serviceable Temp. Range (F): -60 to 250
* Shaft Dia. Range (In.), 1/2-7/8
Boston Gear No. XFCR15 Rubber Coupling Insert
For Coupling Size FC15, Maximum Torque 125 Inches per Pound, Color Black
* Temp. range: -32 Degree to 200 DegreeF (-35 Degree to 93 DegreeC)
* Oil-Resistant Synthetic Rubber
* Recommended where quietness is desired, particularly at motor speeds.
* Item: Oil Resistant Spider Insert
* Max. Torque (In.-Lbs.): 125
* Serviceable Temp. Range (F): -32 to 200
