Iv-18 large vfd tubes (ussr-1990). qty= 5

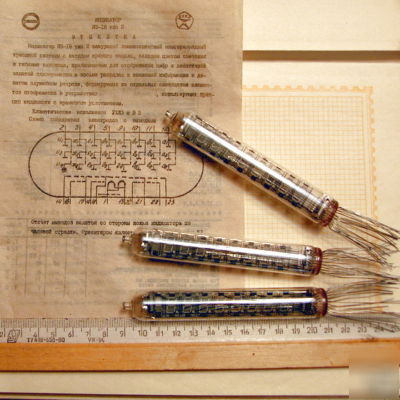

IV-18 LARGE VFD Tube (USSR-1990). QTY=5
(Vacuum Green color Fluorescent Display)
New, old stock, with data sheet
Use it to make your own clock, timer, counter or whatever requires digit indicators
This tube has 8 seven segment numericals with decimal point.
It displays numbers from 0 to 9.
The very first segment has a thick dot on top of the '-' sign.
Tube size: 18 x 115 mm (0.72 x 4.6 )
Total current consumption: (40 60) mA
Grid Current (for one digit): 11 mA
Anode segment current (for one digit): 8 mA
