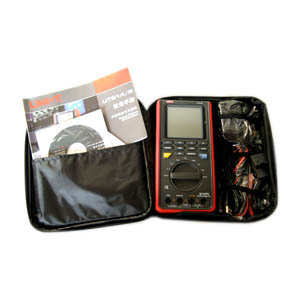

Uni-t handheld digital multimeter oscilloscope UT81B
Up for Sale is a 100% Brand New ,AND it is a professional quality instrument, designed for use by technicians and DIY-ers who need accurate and reliable readings. The digital multimeter has a wide range of measurement capabilities and a sturdy body which is protected by a bright red rubber casing.
don`t worry about the plug ,we will offer the free one according the different country !!!
Meter automatically selects the best range when in multimeter mode
Audible alarm when resistance readings are below threshold
Measures signal on/off time in %
Display updates 2 - 3 times per second
Displays polarity, overload and low battery
USB is optically isolated to ensure safety
Takes 9 different measurements
Easy-to-read, large, backlit LCD screen
Tough unit with protective rubber casing
Foldable stand on back of meter
Display: 160 x 160 monochrome LCD with 3999 max reading
Fused protection for mA input terminal: F0.5A/250V, ?5x20mm
Fused protection for 10A input terminal: F10AH/250V, ?5x20mm
Compliant: IEC 61010 CAT II 1000V, CAT III 600V over voltage and double insulation standard
Operating temperature: 0oC ~ 50oC (32oF ~ 104oF)
Storage temperature: -10 oC ~ 50 oC (14oF ~ 22oF)
Relative humidity: 75% @ 0oC ~ 40oC; 0% @ -10oC ~ 50oC
Dimensions: 10 x 20 x 5cm (4 x 8 x 2")
Screen dimensions: 6 x 6cm (2.3 x 2.3")
Weight including battery: 525g
Power: X4 1.5V (R6) batteries or power adapter
Power adapter input: 230V -50Hz, 100mA
Power adapter output: 6V-450mA, 2.7VA
CD-ROM containing installation guide and PC interface software
