Mcx crimp plug rf connector for RG316 RG179 RG174

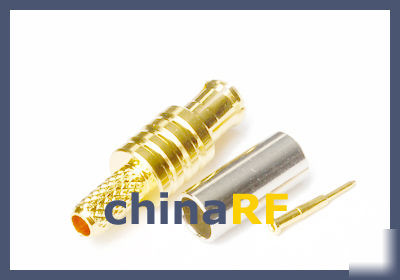

MCX Crimp Plug RF Connector for RG316 RG179 RG174
Temp.range..................-65 +165 degree Celsius
Impedanec....................50 75
Frequency Range............DC 6GHz
Working Voltage.............250V (50 )? 170V (75 )
Withstand Voltage.........750V (50 )? 250V (75 )
Center Contact............... 5m
Outer Contact................ 2.5m
Insulation resistance........ 1000 m
VSWR Straight................ 1.15
Right angle..................... 1.25
shell ..............brass ..........goldplated
contact pin ........brass........goldplated
socket............. beryllium.....goldplated
elastic contact.... beryllium...goldplated
crimping suite...copper alloy..nickel or goldplated
0-ring sealing ...6146 silastic
