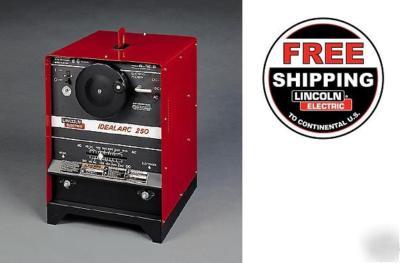

Lincoln electric idealarc 250 stick welder K1053-7
Lincoln Electric Idealarc 250 Stick Welder, 208/230/460V 1 Phase 60 Hz
The Idealarc 250 is the classic workhorse of the Lincoln Electric stick welding power source line. It produces up to 300 amps of brute AC welding strength or down to 40 amps of smooth DC welding performance.
Add the optional TIG Module to create a versatile AC/DC TIG welder for welding aluminum or other alloy metals.
The Idealarc 250 is well suited for industrial production welding applications, for maintenance and repair shops where welding versatility is needed, and for the shop or farm where ruggedness and durability is required.
Outstanding arc stability and built-in stabilizer provide popout-resistant welding with all AC electrodes.
Versatile welding range with up to 300 amps AC and 250 amps DC.
Suitable for use with every type of electrode including low hydrogen, stainless steel, hardfacing, aluminum and bronze.
Easy set-up and operation. Full range continuous current control dial with current indicator for exact heat required for each job.
Change polarity with a twist of the wrist - AC, DC+ or DC-.
Stackable case design allows machines to be stacked 3 high to save valuable floor space.
PC boards for extreme environmental protection.
Dimensions (in): 27 H x 19 W x 21.5 D
Rated Output: AC: 250 Amps / 30 Volts / 30% Duty Cycle
DC: 250 Amps / 30 Volts / 30% Duty Cycle
Output Range: 35-300 Amps AC, 40-250 Amps DC
