> CK06BX334K (17PCS)

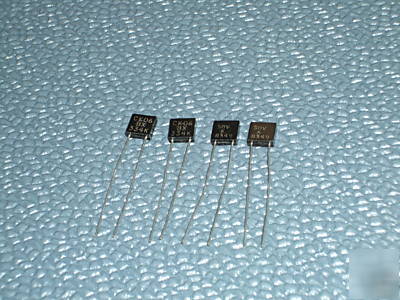

CK06BX334K (17PCS)
CAPACITANCE VALUE PER SECTION - 0.330 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION - -10.00 TO 10.00 PERCENT SINGLE SECTION
VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE - -25.0 TO 15.0 WITH RATED VOLTAGE APPLIED SINGLE SECTION
NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
BODY STYLE - 27A W/O MTG FACILITIES TERMINAL(S) ON ONE SURFACE
BODY LENGTH - 0.290 INCHES NOMINAL
BODY WIDTH - 0.290 INCHES NOMINAL
BODY HEIGHT - 0.090 INCHES NOMINAL
TERMINAL LENGTH - 1.250 INCHES MINIMUM
TERMINAL DIAMETER - 0.025 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH - 0.185 INCHES MINIMUM AND 0.215 INCHES MAXIMUM
INSULATION RESISTANCE AT REFERENCE TEMP - 1000.0 MEGOHM-MICROFARADS
DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT - 2.5000
TEST DATA DOCUMENT - 81349-MIL-C-11015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-11015/19D GOVERNMENT SPECIFICATION
(NON-CORE DATA) OVERALL LENGTH - 0.290 INCHES NOMINAL
(NON-CORE DATA) OVERALL WIDTH - 0.290 INCHES NOMINAL
(NON-CORE DATA) OVERALL HEIGHT - 0.090 INCHES NOMINAL
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - CK06BX334K
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC11015-19
