#10293 - 50" maag model sh 100Z rack type gear shaper

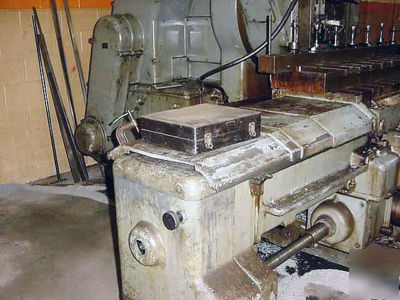

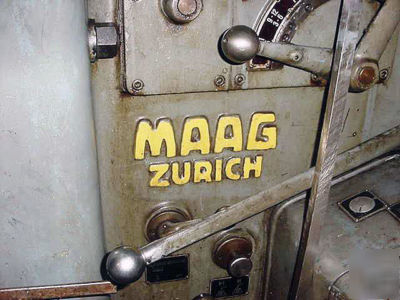

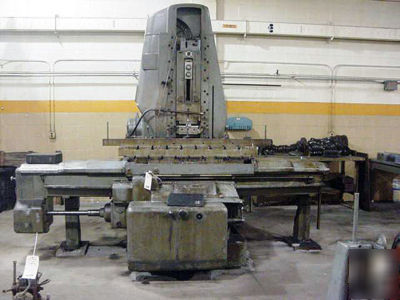

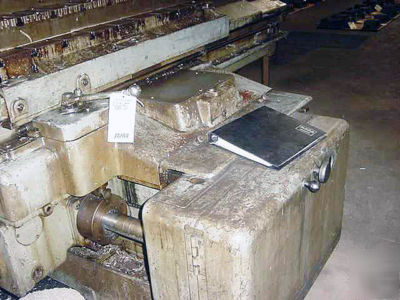

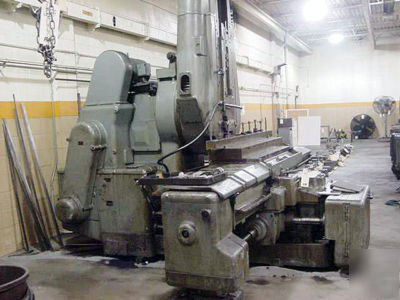

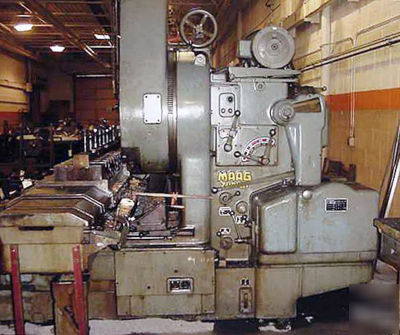

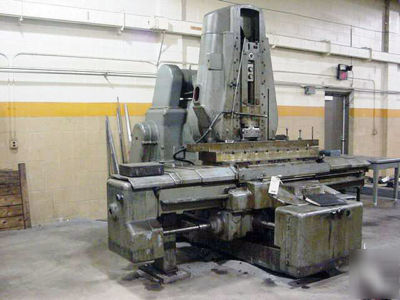

50" MAAG MODEL SH 100Z RACK TYPE GEAR SHAPER
Max. length of rack (in one set-up) 1,250mm
Width of tooth 0 deg. straight 250mm
Max. length of tool stroke 30 - 325mm
Number of strokes 6 - 125/min.
Max. weight of workpiece 800 kg
Total electrical load, approx. 12 kW - 380V - 50Hz

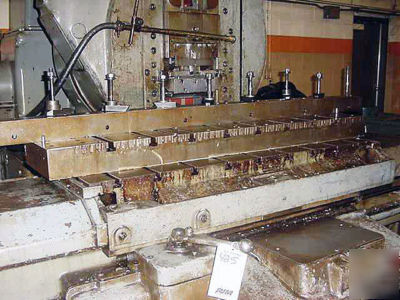

Clamping device for racks up to 1.000mm
Lateral table supports for heavier cuts
Workpiece length can be increased by adjusting the blank lengthwise
