Qty 10 * 74HC126 74HC126D quad buff/line driver smd 14
Output capability: bus driver
The 74HC/HCT126 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The HC/HCT126 are four non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs (nY) are controlled by the output enable input (nOE). A LOW at nOE causes the outputs to assume a HIGH impedance OFF-state. The 126 is identical to the 125 but has active HIGH enable inputs.

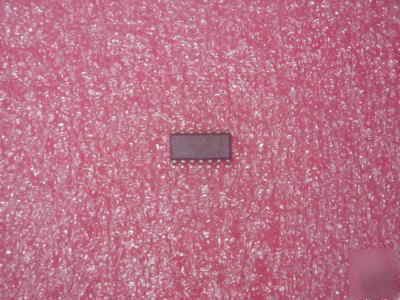

The chip comes in a 14 pin Small Outline package.
