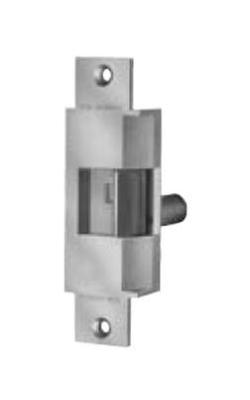

Von duprin electric strike (6223-US32D-24VDC-fse-ds)
-Fail Secure (Electrically unlocked)
-OPTIONS Included: DS (Dual switch monitoring)
The 6223 Electric Strike: Closed back electric strike for use with mortise locks without deadbolt or cylindrical locks on 1-3/4" thick double door (hollow metal, aluminum or wood) applications. Designed to replace Von Duprin 3091 and 3092, mortise applications only - 4-3/4" minimum stile required. Not for wood applications.
* Accepts 3/4" throw latchbolt
* UL Listed Burgulary-Resistant and Electric Strike for fire doors and frames. A label for single doors and B label for double doors. Strikes meet the requirements of ANSI 156.5, Grade 1, 1992.
* Dual Switch Monitoring: Dual switch monitoring option has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked.
* Two switch options are available: The Standard DS Monitoring and The DS Low Current Dual Signal. The DS standard is rated 24V, with an operating range from 2 ampere to 50 milliampere. The DS low current dual signal has low volt gold contact switches for use on applications associated with computer control and monitoring, rated 24V, with an operating range of 50 milliampere or below.
* Fail Secure electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible.
* Fail Safe electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible.
* Entry Buzzer is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is unlocked.
The Von Duprin 6000 series strikes have a number of features:
* UL Listed Burglary-Resistant
* Available in 12VDC or 24VDC models
* Adjustable strike box allows for alignment compensation
* 2 piece plug connectors are included for ease of installation
* Solenoid operates at 0.6 amps at 12 or 24 volts
Internet price is about $550 each
