Ge topaz tpz-rim-1 remote input module 16 supervised in

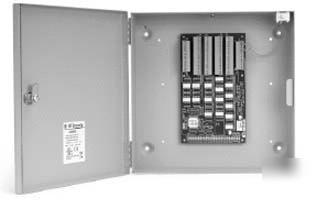

Topaz remote input module with enclosure and lock
The RIM Remote Alarm Input Module supports sixteen additional supervised alarm inputs for monitoring of motion detectors, glass break sensors, door contacts, push buttons, and other alarm devices. The RIM includes sixteen on-board tri-color LED indicators that provide at-a-glance alarm status for each input. Also provides programmable auxiliary relays (outputs) for interface with other building systems.
* Mounted inside a sheet metal enclosure with tamper
* Up to four RIMs per ACURT panel connected through RS-485
* Connect through expansion port on panel or link remote to the panel using on-board RS-485 communications interface
* Simple and cost effective expansion of alarm input and relay output capacity
* Modules communicate with ACURT panels through simple multi-drop RS485 wiring
* Reduced installation and wiring costs since the modules can be placed close to monitored or controlled devices
* 16 UL grade AA supervised inputs
* 16 tri-color LED indicators provide alarm status for each input
* 2 auxiliary Form-C output control relays (SPDT rating: 30 VDC at 2 amps each)
* Each monitored device connnected to a supervised input is configured with a pair of separately purchased 1000 Ohm end-of-line resistors wired in a series-parallel configuration (at the device) for line supervision
