> Bird 8890-300 5KW rf dummy load coaxial resistor+blower
Bird 8890-300 5KW rf dummy load coaxial resistor+blower

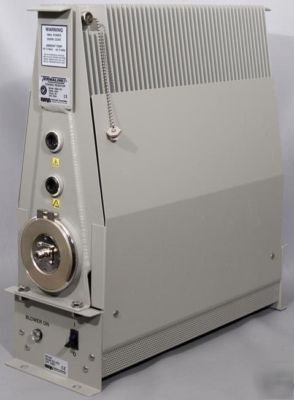

Bird Electronics 8890-300 5 kW Termaline RF Coaxial Resistor Dummy Load
List Price is: $2,275.00 NEW From Bird Electronics.
The Main Unit's Serial Number Tag Reads:
Watts: 2500 (The addition of the blower makes this unit a 5000 W unit)
The Blower's Serial Number Tag Reads:
Model Number: BA-300 (Same as a BA-300-115
Link to the Manual: Bird 8890 Series Termaline Load Resistor Manual
* 5 kW (with the addition of the blower), Oil-Cooled, Type QC Type-N Female
* Rugged load for high power base station RF testing up to 2.4 GHz.
* Oil-assisted (vented) convection cooling for safe, continuous operation up to 2500W full rated power.
* Simple but rugged design minimizes maintenance requirements.
The Model 8890-300 TERMALINE Load Resistor is a self-contained high-power 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under nonradiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 2.4 GHz.
Ambient Temperature Range: -40 C to +45 C
Connector: QC Type-N (Female)
Frequency Range and VSWR: DC to 1 GHz at 1.1 max., 1 GHz to 2 GHz at 1.25 max., 2 GHz to 2.4 GHz 1.3 max
Load Coolant: 2.9 gal. (11 liters) silicone oil
Nominal Size: 23 15/16" L x 22 1/16" H x 7 1/8" W (595 x 560 x 181 mm)
Operating Position: Horizontal Only
Power Rating: 2500 W continuous (The blower changes this to 5000 W)
* Picture 6 - Input Connector
* Picture 7 - The Blower's Serial Number Tag
* Picture 8 - The Dummy Load's Serial Number Tag
