Axiohm A758-1011-0142USB thermal pos receipt printer

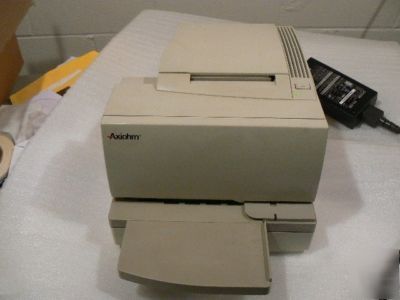

AXIOHM A758-1011-0142 USB THERMAL POS RECEIPT PRINTER
This recent off lease printer was pulled from a working environment. We then test and clean it to ensure it is working.
These are very nice, durable units. All units cleaned and tested to be 100% functional!!
download drivers and manual: http:// /downloads_7.aspx
TPG A758 Thermal and Impact Hybrid Receipt Printer with Clamshell Design
Backwards compatible with the TPG A756, the new TPG A758 automatically prints A756 graphics at the higher resolution of 203 DPI while maintaining exact proportions. The TPG A758 also includes advanced features such as enhanced print modes, remote diagnostics, single button programming, and an expanded 90 mm paper capacity the largest in its class.
Specifications for the TPG A758 Receipt Printer
Page 437, 850, 852, 858 (with Eurosymbol), 860, 863, 865, 866, user-defined and several expanded sets
UPC-A, UPC-E, Code 39, Code 128, JAN8 and JAN13 (EAN), Interleaved 2 of 5, Codabar, PDF 417 (receipt station only)
192K up to 1.7MB, shared for graphics, logos, user defined characters and user data storage.
Mother/Daughter Board Architecture supports: RS- 232, IEEE 1284 Bi-Directional Parallel, USB
Reader Integrated in slip station
E-13B and CMC-7, autodiscriminate
E-13B only. Programmable to any format
2.68" L x 2.0" W minimum (68 mm x 51 mm)
2.75" L x 2.0" W minimum with Flip Option (70 mm x 51mm)
2.0" L x 8.0" W minimum (51 mm x 204 mm)
EMI: FCC, ICES-003: Class A; CE, Austel, VCCI: Class B
UL 1950, CSA 22.2 No.950, CE (EN60950), MITI (power supply)
Reliability Thermal Print Mechanism
Auto Knife Cutter - 1.5 M cuts
Impact Print Mechanism - 15 M lines
Impact Printhead - 200 M characters
9.0" x 10.4" x 7.0" (229 mm x 264 mm x 178 mm)
MICR Reader with extended slip table
Flip mechanism for one step check processing
OLE POS for Windows compatible and Windows/Windows NT Drivers
