General electric ge 4-stage protractor set-jet engine b
General Electric GE 4-Stage Protractor Set. Looks like adjustment tooling for a jet engine or something.
This is used for rigging the compressor variable vanes, on a jet engine. Mostlikely a J-79 that powered the F-4. (per jc).
Dial indicators attach to the protractor arms. Face view above and backside view below.
STG 1, 2, 3 and 4? protractor arms shown above with close view below.

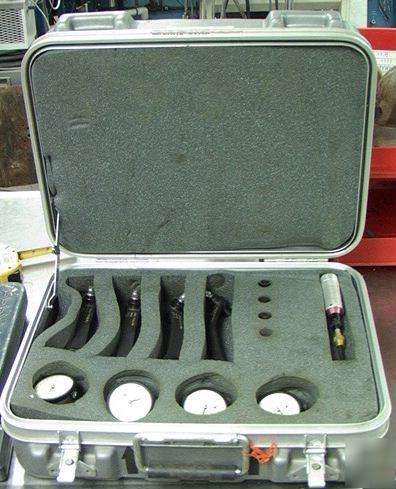

Really nice protective case shown below.
Might be just what you need for your mutlti-stage precision dial indicator protractor application.
Condition looks very good used. We have no idea what they are for or how to use them. No documentation.
