Rauland MRR7800 remote reciever module

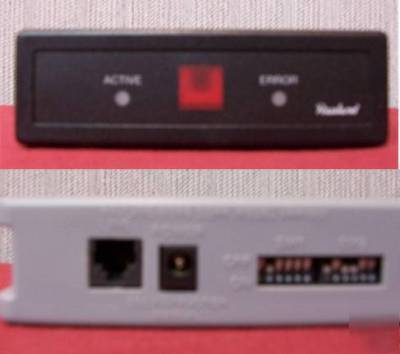

The MRR7800 Remote Receiver Module is part of the Telecenter MR and Rauland
Ranger series of products. It is compatible with the Telecenter IV+, Telecenter V
(V308), Telecenter System 21, and Ranger systems.
Note: For systems using the MR100 media controller, use version 7.1 or later
The MRR7800 receives infrared commands from the MRH7700 Hand-Held Remote
Controller or RANBARC Bar Code Reader. It then translates the commands into
DTMF signals and sends them to a media device controller (such as an MR100 or
NOT INCLUDED: Not Supplied with the MRR7800 is a calculator-style 9 VDC power supply which plugs
into an AC outlet. Plug the other end of the cable into the back of the receiver.
If you are installing multiple MRR7800 units, a regulated 12 VDC Class 2 power
supply can be used to remotely power all receivers. Each unit requires 50mA DC.
