Dwyer 3010 0-10" photohelic pressure gauge

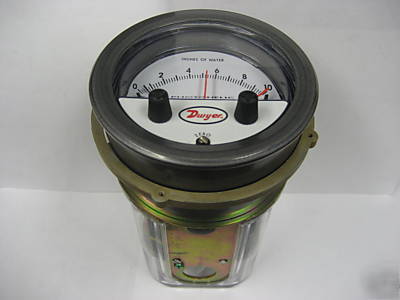

This is a New Dwyer Photohelic Pressure Gauge. This part was purchased from another companies liquidation sale. The part is in good condition in factory packaging. RANGE: 0 - 10" OF WATER COLUMN SPECIFICATIONS
Accuracy: 2% of full scale at 70 F (21.1 C). 3% on -0 and
Pressure Limits: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP
option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar). 36003S
36010S; 150 psig (10.34 bar). 36020S and higher;1.2 x full
Temperature Limits: 20 to 120 F.
(-6.67 to 48.9 C) Low temperature option available.
Size: 4 (101.6 mm) dial face, 5 (127 mm) O.D. x 8-1/4 (209.55
Switch Type: Each setpoint has 2 Form C relays (DPDT).
Repeatability: 1% of full scale.
Electrical Rating: 10A @ 28 VDC, 10A @ 120, 240 VAC.
Electrical Connections: Screw terminals. Use 167 F (75 C)
Power Requirements: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC
Mounting Orientation: Diaphragm in vertical position. Consult
factory for other position orientations.
Set Point Adjustment: Adjustable knobs on face
