> 4' x 11" carlton radial drill w/12" extra h, 1970
4' x 11" carlton radial drill w/12" extra h, 1970
4' X 11" CARLTON RADIAL DRILL w/12" EXTRA H, 1970

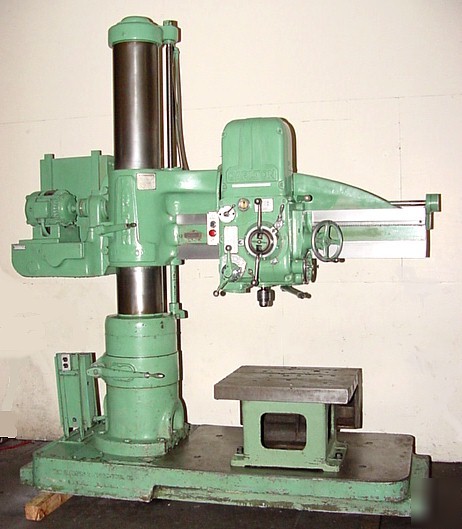

4' X 11" CARLTON RADIAL DRILL w/12" EXTRA HEIGHT, 1970
MODEL: 1A, S/N: 1A-4103, NEW: 1970
ARM LENGTH .......................... 4'
FACE OF COLUMN TO CENTER OF SPINDLE . 9" TO 4'
SPINDLE TO BASE ..................... 3'2" TO 5'7"
WORKING SURFACE OF BASE ............. 3'6" X 5'5"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 12"
SPINDLE DIAMETER .................... 2-1/2"
TAPER IN SPINDLE .................... #4 MT
FEEDS-(6 CHANGES) ................... .004 TO .025 IPR
SPINDLE SPEEDS-(12 SPEEDS) .......... 60 TO 1,500 RPM
MILD STEEL ....................... 2"
CAST IRON ........................ 2-1/4"
TRAVERSE OF ARM ON COLUMN ........... 3'4-1/2"
TRAVERSE OF HEAD ON ARM ............. 3'-3"
APPROXIMATE WEIGHT .................. 9,000 LBS
OVERALL DIMENSIONS HEAD DOWN ........ 9' TALL
* 12" EXTRA HEIGHT COLUMN FOR ALLOWING TALLER WORK PIECES
* POWER ELEVATION OF ARM ON COLUMN
* MACHINE HAS 3 PHASE 60 CYCLE 220/440 VOLT ELECTRICS
PRESENTLY WIRED FOR 220 OPERATION
CONDITION:** SUPERB - LOOKS AND RUNS GREAT!**
INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE
Click Here For More Carlton Machines
