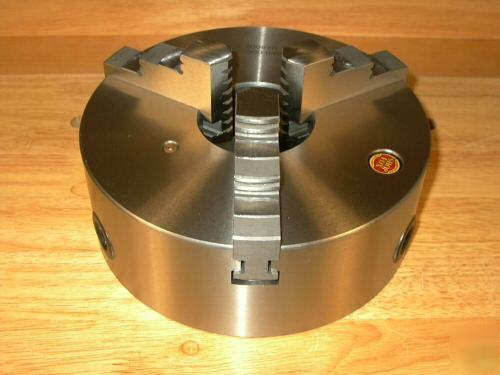

3-jaw x 6" simultaneous metal lathe chuck - plain back
This is a heavy duty 6" diameter x 3-Jaw Self Centering Metal Lathe Chuck with a plain back. This beautiful chuck has the following specifications:
Body is 6.3" (160mm) in diameter x 2.6" (65mm) thick (jaws project 1.14" out from body)

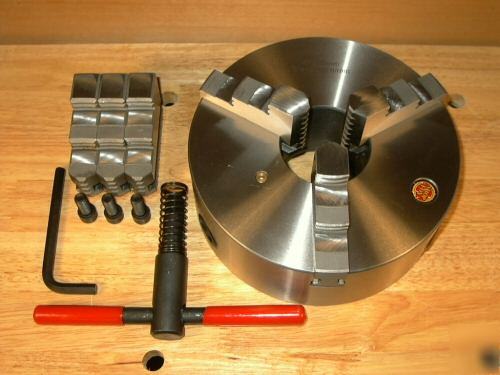

Includes (3) Inside jaws, (3) outside jaws, large safety chuck key, (3) 8mm mounting bolts, & Allen wrench
Smallest diameter gripped by jaws = .118" (3mm)
Largest diameter gripped by jaws = 5.709" (145mm)
Run-out of chuck body = .0033" (.085mm)
Run-out of test bar in jaws = .0063" (.160mm)

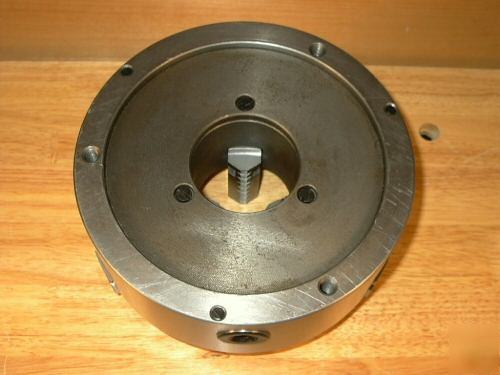

This is a plain back chuck, but it has (3) 8mm threaded holes on the outer ring in a 142mm dia bolt hole circle...positioned 120 degrees apart.
*WE DO NOT CARRY BACK PLATES TO FIT THIS CHUCK.
If you need an accurate, heavy duty, self centering chuck at an affordable price, this high quality imported chuck will fill the bill.
We carry the following metal lathe chucks:
Please email for details and prices.
