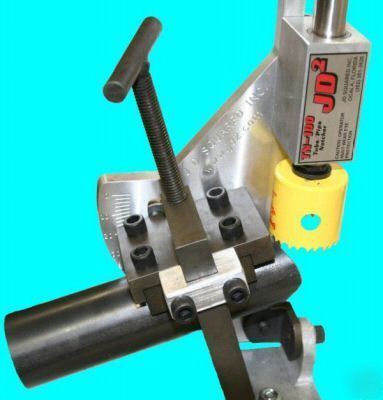

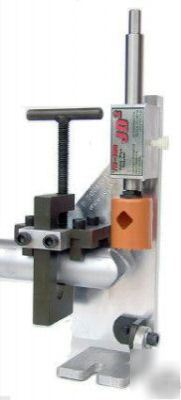

Notcher for pipe & round tube tn-100 from JD2
Tubing Notcher from JD Squared
The TN-100 is known for its high-quality, long life, and accuracy.
For those who have come to expect the best in quality and durability. There is no better manufacturer for tubing notchers than JD Squared.
EASY TO USE - The TN-100 may be mounted in a drill press or simply clamped in a vise and used with a 1/2" hand drill. The 1/2" hand drill setup is by far the best in our opinion. In this way the TN-100 can be laid horizontal and when notching 45 degree angles the floor will not interfere with the tubing being notched. Also, since the hand drill is fed in horizontally, the drill's weight doesn't try to force the hole saw in too fast.
GROUND AND POLISHED STAINLESS STEEL SHAFT & RIGID BEARING BLOCK - This is the most critical part of a hole saw style notcher. The TN-100 utilizes a ground & polished stainless steel shaft riding in a bearing block incorporating twin needle bearings and separate grease seals for maximum rigidity and reliability.
ADJUSTABLE TUBE CLAMP - The cradle assembly has been designed to be tough, accurate and easy to use. By CNC machining separate v-shaped pieces that are adjustable up or down, small diameter tubing can be notched easily. Machining the clamp mechanism from a solid block of steel eliminates the problems of tube walk in notchers that use a U-strap.
* Tube capacity 3/4" to 2" O.D.
* 3/4" ground and polished stainless steel shaft
* 3/4" I.D. double-sealed bearings
* Angle notches 0 - 50 degrees
This Notcher DOES qualify as an accessory for free freight, when purchased at the same time as a JD2 Bender.
