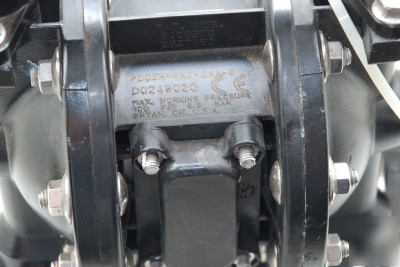

New ingersoll rand 1/2" metallic double diaphragm pump
INGERSOLL RAND 1/2? METALLIC DOUBLE DIAPHRAGM PUMP NEW!
You can have this for a lot less!!!!!
Air Inlet Pressure Range . . . . . . . . . 10 - 100 p.s.i. (0.69 - 6.9 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i. (0.69 bar)
Fluid Outlet Pressure Range . . . . . . 10 - 100 p.s.i. (0.69 - 6.9 bar)
Maximum Flow Rate (flooded inlet) . . 12.0 g.p.m. (45.4 l.p.m.)
Displacement / Cycle @ 100 p.s.i. . . 0.039 gal. (0.15 lit.)
Maximum Particle Size . . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat material)
E.P.R. / EPDM . . . . . . . . . . . -60_ to 280_ F (-51_ to 138_ C)
Hytrel . . . . . . . . . . . . . . . . . -20_ to 150_ F (-29_ to 66_ C)
Nitrile . . . . . . . . . . . . . . . . . 10_ to 180_ F (-12_ to 82_ C)
Polypropylene . . . . . . . . . . . 35_ to 150_ F (2_ to 66_ C)
Polyurethane . . . . . . . . . . . . 10_ to 150_ F (-12_ to 66_ C)
Santoprene . . . . . . . . . . . . . -40_ to 225_ F (-40_ to 107_ C)
Teflon P.T.F.E. . . . . . . . . . . . 40_ to 225_ F (4_ to 107_ C)
Viton . . . . . . . . . . . . . . . . . . -40_ to 350_ F (-40_ to 177_ C)
Noise Level @ 70 p.s.i. - 60 c.p.m._ . 75.0 db(A)_
