Cutler hammer hazard location limit switch #10316H2197

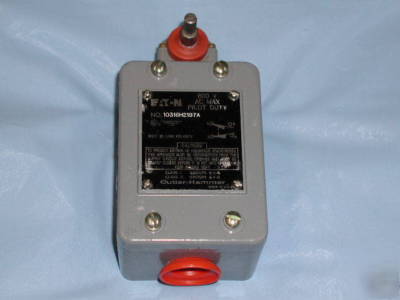

Cutler Hammer Hazardous Location Limit Switch #10316H2197
CX Limit Switches by Eaton s electrical business are designed for extreme environmental service in NEMA 7 9 locations where there exists a danger of an internal or external explosion of flammable gases, vapors, metal alloy or grain dust. Markets served include mining, grain storage, forest products, petrochemical, pharmaceutical and waste and sewage management.
* NEMA 7 Division I, Class I, BCD
* NEMA 9 Division I, Class II, EFG
* Complete assembled switch with spring return head
* Head Type: Side rotary operated
* Narrow differential 5 pretravel (field convertible to clockwise only or counterclockwise only operation)
* Travel to operate contacts: 5
* Travel to reset contacts: 2
* Force to operate contacts: 6.0 in-lb
* Minimum return force: 4.5 in-oz
* 1N.O.-1N.C (contacts must be same polarity when both circuits are used)
* Electrical data - maximum contact ratings per pole:
* 120VAC - Make: 60A, Break: 6A, Cont.: 10A
* 240VAC - Make: 30A, Break 3A
* 480VAC - Make: 15A, Break: 1.5A
* 600VAC - Make: 12A, Break: 1.2A
* VA - Make: 7200, Break: 720
* Dimensions: 5.35"H x 3.00"W x 3.06"D
* Material of construction: Cast aluminum die cast
* Conduit entrance: 3/4" pipe tap
* Mounting: Surface mount
* Operating temperature: -20 to 200 F (-29 to 93 C)
Sells for $686.27 at galco.com!!!
