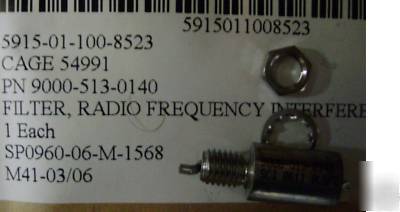

Cobra helicopter radio frequency interference filter
III BODY SURFACE TREATMENT TIN
III OPERATING TEMP RANGE -55.0 TO 95.0 DEG CELSIUS
III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE 400.0 VOLTS AT SEA LEVEL
III UNPACKAGED UNIT WEIGHT 9.000 GRAMS
III MAXIMUM TEMP RISE 25.0 DEG CELSIUS
III PRINCIPAL CIRCUITRY TYPE PER FUNCTION INDUCTANCE-CAPACITANCE BLANK
NOMINAL THREAD SIZE 0.250 INCHES
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR UNF
MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED BUSHING
BODY OUTSIDE DIAMETER 0.375 INCHES MAXIMUM
BODY LENGTH 0.581 INCHES MAXIMUM
OVERALL LENGTH 1.233 INCHES MAXIMUM
STYLE DESIGNATOR 9 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES
FUNCTIONAL TERMINAL TYPE AND QUANTITY 1 TAB, SOLDER LUG OUTPUT
FUNCTIONAL TERMINAL TYPE AND QUANTITY 1 TAB, SOLDER LUG INPUT
INCLOSURE TYPE HERMETICALLY SEALED
OPERATING CURRENT RATING PER FUNCTION IN AMPS 5.0 BLANK
POWER LINE FREQUENCY RATING PER FUNCTION IN HERTZ 400.0 BLANK
OPERATING VOLTAGE RATING AND TYPE PER FUNCTION 115.0 VOLTS AC BLANK
LOAD IMPEDANCE PER FUNCTION 50.0 OHMS BLANK
SOURCE IMPEDANCE RATING PER FUNCTION 50.0 OHMS BLANK
34A HELICOPTER, COBRA/TOW, AH SERIES
011515357 POWER SUPPLY SUBASSEMBLY
