New smc gripper and air cylinder with mounting bracket,

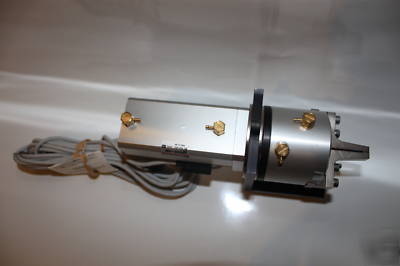

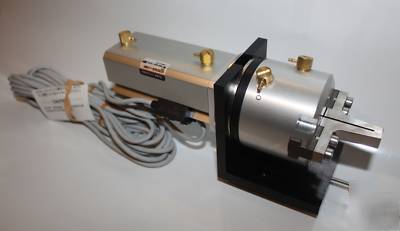

This is a new, never used SMC gripper and air cylinder combo. The set includes a gripper, an air cylinder, and a mounting bracket. The mounting bracket has a sliding adjustable base.
Fluid: air @ 14 to 140 F (-10 to 60 C)
Operating Pressure: 14.5 to 87 psi (0.1 to 0.6 MPa)
Repeatability: .0004in ( 0.01mm)
Max operating frequency: 60 cycles per minute
Effective gripping force at 72.5 psi (0.5MPa):
Much more information here: http://content.smcetech.com/pdf/mhs.pdf
(MHS2 gripper start on Page 6)
Max Operating Pressure: 145 psi (1. 0Mpa)
Much more information here: http:// /americansmc/ncq2/8_ncdq2k_series_cylinders.pdf
