280KG / 600LB holding force magnetic lock with led

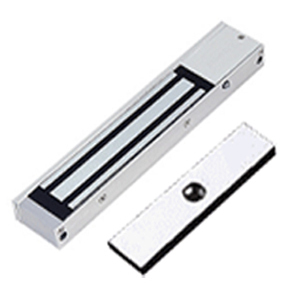

280KG(600lbs) Holding Force Magnetic Lock with LED
* PT-280 Single Door Magnetic Lock with LED
* Lock Size:250Lx42Wx25H(mm)
* Armature plate:180Lx38Wx11H(mm)
* Holding Force:280kg(600lbs)
* Dual Voltage:DC12V(default)/DC24V
* Current Draw:DC12V/500mA(default) or DC24V/250mA
* Fail Safe:Locked when energized
* Safety function: Built-in voltage spike suppressor
* Opening Mode:90 degree swinging door
* Suitable For:Wooden Door, Glass Door, Metal Door, Fire Proof Door
