> 5-axis (TB6560) cnc driver board 4 stepper motor router
5-axis (TB6560) cnc driver board 4 stepper motor router

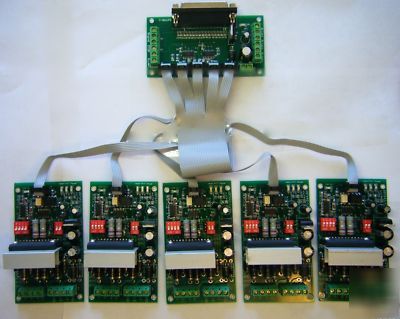

5 AXIS TB6560 CNC STEP MOTOR DRIVER 's features:
* HUGE improvements from TA8435 based boards **
* Resolution: Full step, 1/2, 1/8,1/16 selectable via switch for each axis.
* Absolute maximum ratings: 40VDC @ 3.5 amps(peak)/phase motor output per axis *
* PC parallel port DB25 connector has being installed onboard.
* Adjustable motor current at 100%, 75%, 50%, 20% of full current by on-board switch
* Supports different 4 Wire, 6 Wire and 8 Wire stepper motors for 3 axis drive.
* Built-in overheat protection circuit in TB6560
* This board is tested through KCAM, Mach 2/3, touborCNC CNC software.
* This board has been used in different design 3D engrave machines, millers, routers.
* Double Buffer for Interface and Driver for reliable Driving and protecting Computer and driver board.
* 1KV, 10 Mbps high speed Optocoupler for full elimination to protect Computer and driver board.
* Step Current(r) Technology included: Step Current technology is used to decrease the current upto 1/2, when motors are in idle for all axis so as to protect expensive step motor and driver board for long time running.
* See TB6560 Datasheet by TOSHIBA. The full current is preset at 2.5A by resisters for this board (you can adjust it by changing them).
**Comparison between TA7835 (used in Univelop V1.0 CNC driver) and TB6560 (used in V2.0 CNC driver board):
* One 5-axis CNC Interface Board
* Five 1-Axis CNC driver boards
We also provide additional 1-axis driver board, interface board, cables for extension of our 5 axis driver boards, and other components.
